皮电反应电极

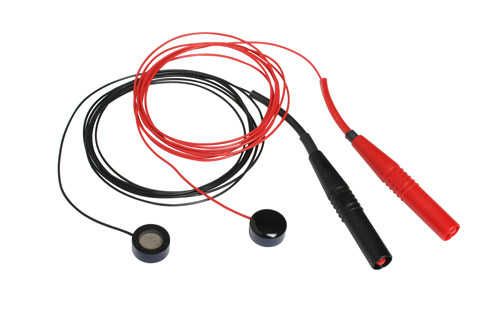

• 银-氯化银电极，带 8 mm 传感器
• 传感器由细粒，均匀混合的Ag-AgCl 压缩和烧结而成，具有强度和稳定性
• 电极厚度为 1 mm，并封装在耐用外壳中
• 提供 1.5 m PVC 绝缘导线

• 配备皮电反应放大器（GSR Amp）的双极指状电极
• 指板由光亮抛光的不锈钢制成，并配有扣带
• 磁共振 (MR) 不安全

• 银/氯化银，轮廓指状电极
• 磁共振(MR)安全

电极包括：

• 幻彩表带 (Velcro straps)
• 5 m 导线
• 2 x 4 mm 带屏蔽的连接器

我们建议使用与这些电极的等渗凝胶来改善皮肤接触和 GSR 记录质量。

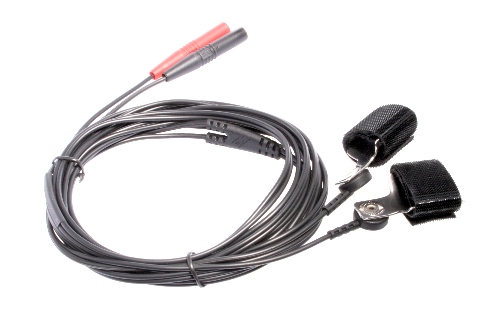

The MLT119F GSR Finger Electrodes are bipolar electrodes that are used with the SEN2131 GSR Sensor to measure galvanic skin response (also known as Electro-Dermal Response, EDR). The finger plates are made from brightly polished stainless steel and are fitted with Velcro tape. The finger electrodes connect to the included adapter cable via a snap fitting. The cable is approx 2m long. Use of conductive gel with these electrodes is not recommended. These electrode cables have 1.5 mm banana connectors and are supplied standard with the GSR Sensor.
