概览
压力信号调节器是一个双通道放大器/接口装置,用于连接一个或两个 Millar Mikro-Tip 导管。本装置的模拟输出信号水平 1 V/100 mmHg 与任何 PowerLab 兼容。
要将每个压力输出端连接到 PowerLab 输入端,需另外购买两个 BNC 到音频的插头 (6.5 mm (1/4"), 2m) 。Millar 压力导管还需要一个 Viking 连接器或 薄型连接器的接口电缆与压力信号调节器一起使用。
配置

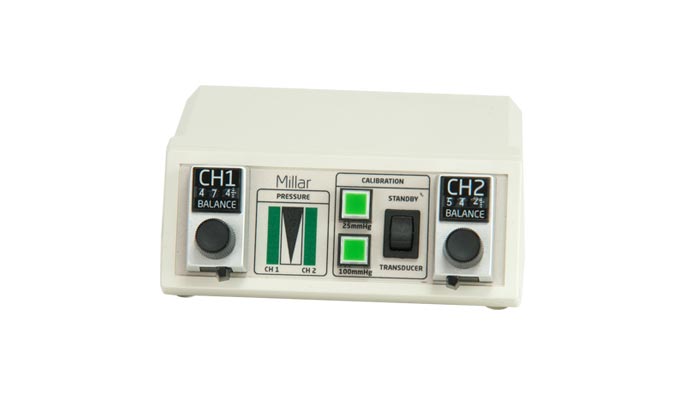

压力信号调节器
压力信号调节器是一个双通道放大器/接口装置,用于连接一个或两个 Millar Mikro-Tip 导管。本装置的模拟输出信号水平 1 V/100 mmHg 与任何 PowerLab 兼容。
要将每个压力输出端连接到 PowerLab 输入端,需另外购买两个 BNC 到音频的插头 (6.5 mm (1/4"), 2m) 。Millar 压力导管还需要一个 Viking 连接器或 薄型连接器的接口电缆与压力信号调节器一起使用。
Millar Pressure System (2 Channel)
The MPS-2000 Millar Pressure System is a two-channel amplifier/interface unit for connecting one dual or two single Millar Mikro-Tip pressure catheters, for ANIMAL RESEARCH applications only. It is CE approved and RoHS compliant. The unit provides two analog output signals that can be recorded by any Instrument Interface or PowerLab data acquisition system. To connect each of its pressure outputs to the PowerLab inputs, two MLAC12 BNC to Audio plug (6.5 mm (1/4"), 2m) need to be purchased separately. Millar pressure catheters require a PEC-10C (Viking) or PEC-10D (Low Profile) Catheter Interface Cables.
支持
支持文章
我们的支持文章包含常见问题的解答、操作方法、解决方案和文档。
详情和技术规格
产品代码
兼容性
PCU-2000
操作系统 | 推荐硬件 | 替代硬件 | |
---|---|---|---|
LabChart Lightning | Windows / Mac | PowerLab C + Instrument Interface | Traditional PowerLab |
LabChart 8 | Windows / Mac | PowerLab C + Instrument Interface | Traditional PowerLab |
MPS-2000
操作系统 | 推荐硬件 | 替代硬件 | |
---|---|---|---|
LabChart Lightning | Windows / Mac | PowerLab C + Instrument Interface | Traditional PowerLab |
LabChart 8 | Windows / Mac | PowerLab C + Instrument Interface | Traditional PowerLab |
