通用铂电极

通用铂电极设计有一个通用夹,其可以适合各种不同的铂电极 (直线、线圈、 Z 字形、 L 形、平),并且适于与 10ml 或更大的 Radnoti 组织器官水浴一起使用。

概览

通用铂电极设计有一个通用夹,其可以适合各种不同的铂电极 (直线、线圈、 Z 字形、 L 形、平),并且适于与 10ml 或更大的 Radnoti 器官水浴一起使用

4、8 和 16 组织腔配置中的完整 Radnoti 组织器官水浴系统 (包括 PowerLab 数据采集系统)可用:

配置

通用夹,带直电极

产品代码
160152-11

适合与 10 ml 或更大的 Radnoti 组织器官水浴一起使用,推荐与组织条或螺旋状物一起使用。

通用夹,带Z形电极

产品代码
160152-12

适合与 10 ml 或更大的 Radnoti 组织器官水浴一起使用,推荐与组织条或螺旋形物一起使用。

通用夹,带线圈电极

产品代码
160152-13

适合与 10 ml 或更大的 Radnoti 组织器官水浴一起使用,推荐与组织条或螺旋状物一起使用,也适合与非常小的样品一起使用。

通用夹,带平电极

产品代码
160152-15

适合与 10 ml 或更大的 Radnoti 组织器官水浴一起使用,推荐与非常小的组织样品一起使用。

通用夹,带L形电极

产品代码
160152-14

适合与 10 ml 或更大的 Radnoti 组织器官水浴一起使用,适合与血管环制备一起使用。

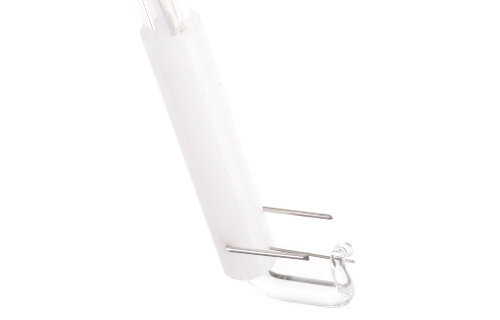

L-Type Stimulating Electrode with Tissue Support

产品代码
160121

It has a lower L-shaped tissue support with two horizontal platinum wire electrodes, and is designed to hold (with 158817 or 158819 Tri Supports) and stimulate a tissue ring, which include blood vessels.

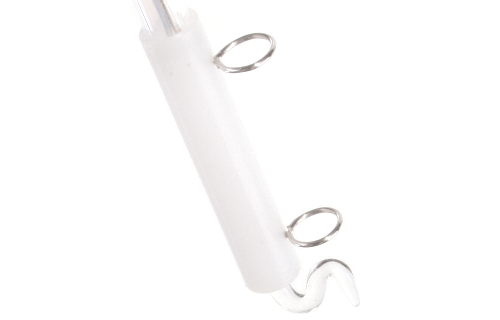

Ring Type Stimulating Electrode with Tissue Support

产品代码
160131

It has a glass tissue hook with two 5 inner mm diameter ring electrodes, and is designed to hold and stimulate a tissue strip or spiral-cut tissue tissue.

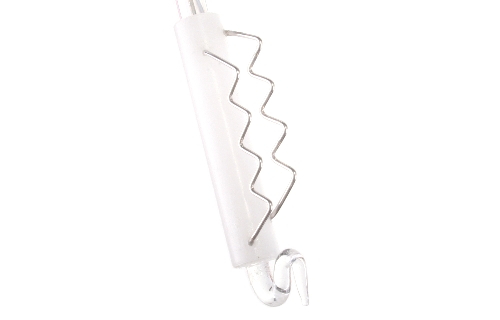

Zig-Zag Type Stimulating Electrode with Tissue Support

产品代码
160151

It has a glass tissue hook with two vertical Zig-Zag electrodes (separated by 10 mm), and is designed to hold and stimulate a tissue strip or spiral-cut tissue tissue.

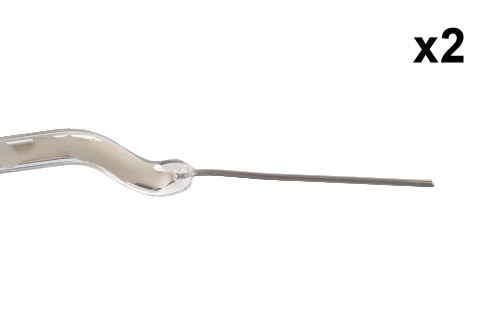

Straight Platinum Lead Electrode Insert (2 pk)

产品代码
160153-A

A set of two platinum straight wire electrode inserts for use with the Universal Holder design and compatible stimulator, which together are designed to generate a field stimulation across a small thin or narrow tissue strip or spiral-cut tissue sample. These are ideal for applications that require less wattage to drive the stimulation.

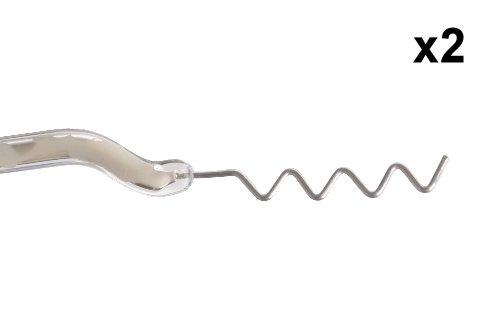

Zig-Zag Platinum Lead Electrode Insert (2 pk)

产品代码
160153-B

A set of two  platinum zig-zag wire electrode inserts for use with the Universal Holder design and compatible stimulator, which together are designed to generate a field stimulation across a thicker or longer tissue strip or a larger spiral-cut tissue sample. These provide a greater and more even field across the sample.

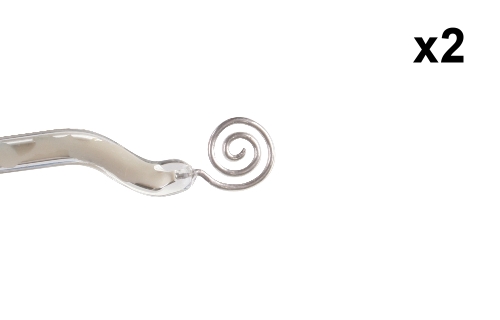

Coil Platinum Lead Electrode Insert (2 pk)

产品代码
160153-C

A set of two platinum coil wire electrode inserts for use with the Universal Holder design and compatible stimulator, which together are designed to generate a uniform field stimulation across either a small tissue strip, spiral-cut tissue or very small tissue samples.

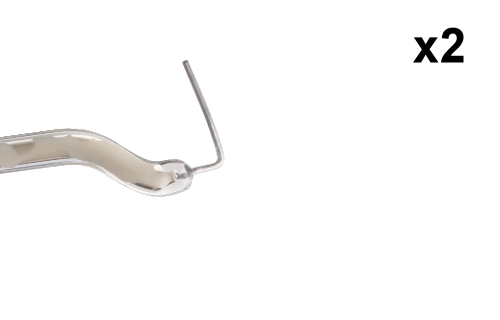

L-shape Platinum Lead Electrode Insert (2 pk)

产品代码
160153-D

A set of two platinum L-shape wire electrode inserts for use with the Universal Holder design and compatible stimulator, which together are designed to generate a uniform field stimulation across tissue ring preparations, which include blood vessels.

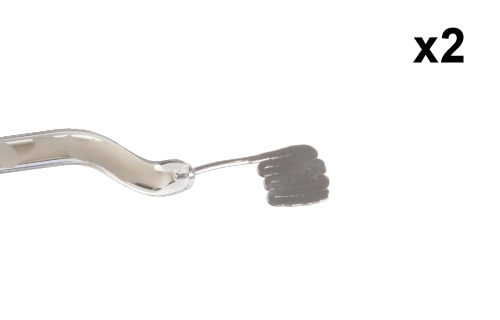

Flat Paddle Platinum Lead Electrode Insert (2 pk)

产品代码
160153-E

A set of two platinum flat paddle electrode inserts for use with the Universal Holder design and compatible stimulator, which together are designed to generate a field stimulation across a very small tissue sample. They provide an alternative to coil electrodes and are ideal when maximizing a low stimulation wattage is required.
